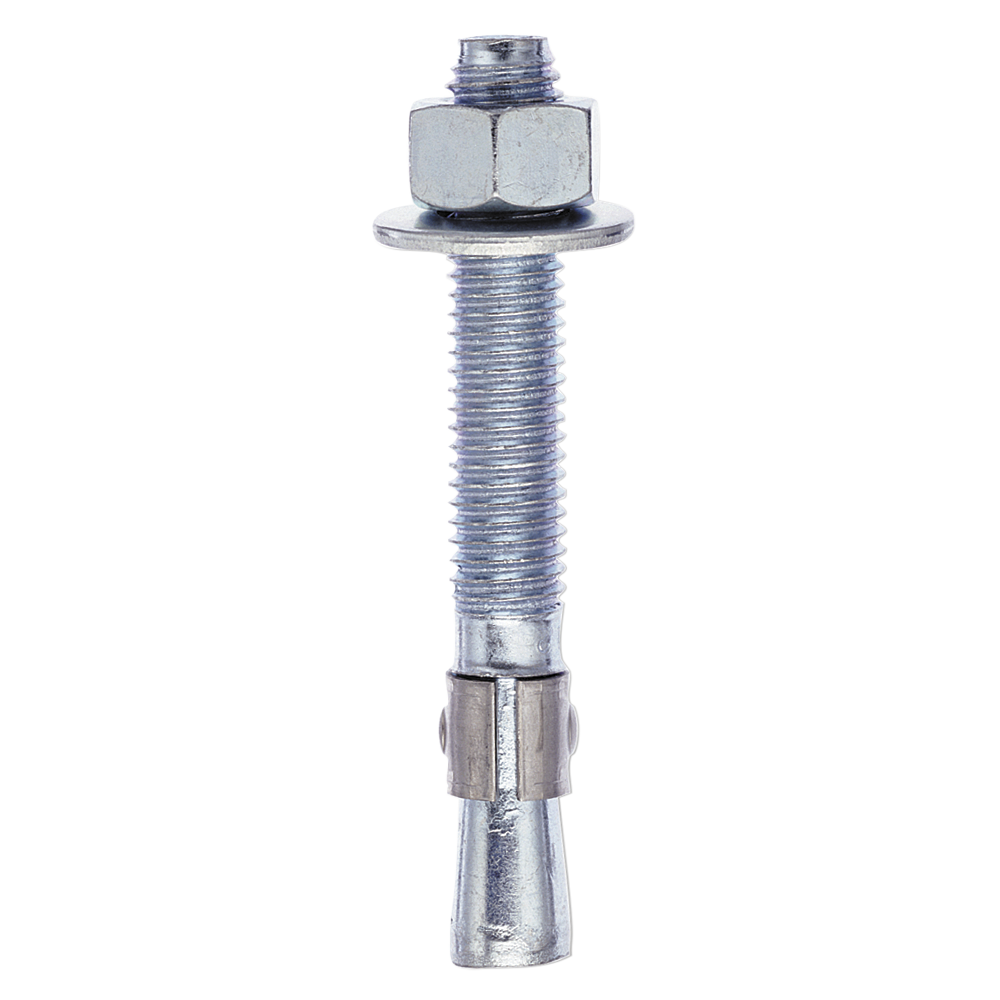

Trubolt Wedge

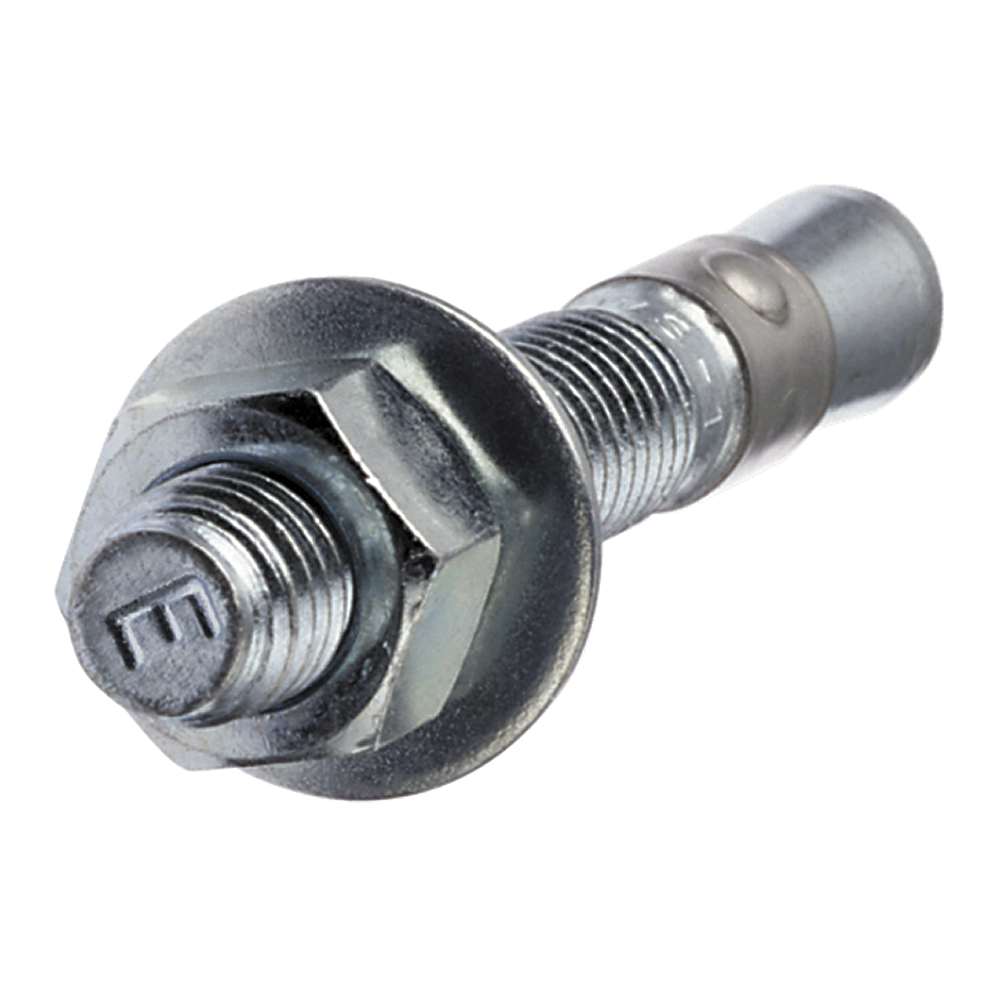

Trubolt Wedge Stainless Steel anchors feature an expansion clip, threaded stud body, nut and washer. Anchor bodies are made of type 304 stainless steel as identified in the drawings or other notations. The exposed end of the anchor is stamped to identify anchor length. Stampings should be preserved during installation for any subsequent embedment verification.

Quick info

SKU: TRUBOLT Categories: ,

ADVANTAGES

  • Expansion anchor for concrete
  • Tools needed for installation: Hammer, Impact wrench or torque wrench
  • Drill bit size required: Same as anchor size
  • Zinc plated coating, and 304 and 316 SS
  • Tie wire version available for suspended ceilings
  • UL and FM approved
  • ICC ESR approved

FULL APPROVALS/LISTINGS

  • Underwriters Laboratories
  • Factory Mutual
  • Listed for use in seismic zones A & B

INSTALLATION GUIDELINE

  1. Select a carbide drill bit with a diameter equal to the anchor diameter. Drill hole at least 1/4″ deeper than normal anchor embedment.
  2. Clean hole with pressurized air or vacuum to remove any excess dust/debris.
  3. Using the washer and nut provided, assemble the anchor, leaving nut one half turn from the end of the anchor to protect threads. Drive anchor through fixture to the specified embedment. Fasten nut and washer flush to surface of fixture.
  4. Expand anchor by tightening nut 3-5 to the specified setting torque.
  • Size Range Diameter1/4" - 3/4"
  • Size Range Length2-1/4" - 7"
  • Corrosion ResistanceZinc-Plated Carbon Steel
  • Head StylesHex Nut and Tie-Wire version
  • Key PerformanceUltimate Pullout Performance in 4000 psi concrete upto 26,540lbs. (1" diameter)
